9kw Diooist Sauna Oven
9kw Diooist Sauna Oven

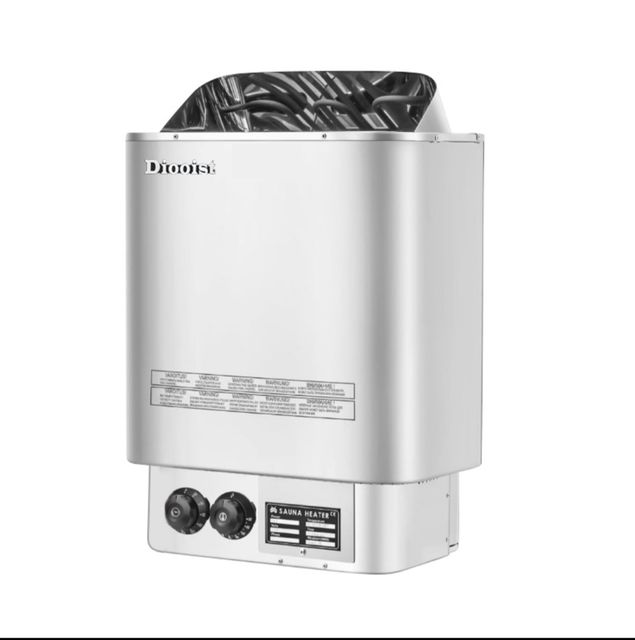

Diooist 9kW Sauna Heater
Here are the key specifications and features for a Diooist 9kW sauna heater, suitable for both residential and commercial sauna setups:
---
Technical Specifications
Attribute Description
Power Output 9 kW
Voltage 220–240V (Single-phase) or 380–415V (Three-phase)
Frequency 50–60 Hz
Room Size Suitability 6–9 m³ (212–318 ft³)
Material Stainless steel or painted steel body
Dimensions Approx. 400 × 350 × 600 mm
Weight ~16 kg (heater body only)
Stone Capacity 20–25 kg of sauna stones
Control Options Internal knob control or external digital control panel (e.g., DO-AT86)
Temperature Range 50–110°C
Safety Features Over-temperature protection, splash-proof design, thermal cut-off
Certifications CE, ROHS, UL for heating components
---
Design Features
1. Heating Elements: Efficient stainless steel tubular heating elements for rapid and consistent heating.
2. Compact Build: Smaller footprint makes it ideal for medium-sized saunas.
3. Stone Bed: Elevated stone cradle to ensure optimal heat and steam dispersion.
4. Durable Materials: Built with corrosion-resistant steel to handle high temperatures and moisture.
5. Ventilation: Enhanced air circulation for uniform heating.
